Elevate your build with shrink-wrap construction screens
When planning a multi‑storey build or a complex project relying on phased external cladding or glazing, delays caused by weather or site exposure can be extremely costly. Shrink-wrap construction screens offer contractors a powerful solution; a temporary, weatherproof “cocoon” that enables internal works to proceed while the façade is still under construction. In this guide, we’ll walk you through the benefits, design considerations, installation best practices and pitfalls to avoid when deploying shrink-wrap construction screens.
What are shrink-wrap construction screens?
Shrink-wrap construction screens are high-strength, flame‑retardant barriers that are heat-shrunk to a supporting sub‑frame to create a tight seal over façade openings. Effectively they act as a temporary external envelope for steel or concrete framed projects, spanning from floor ceiling, sealing off the building interior from dust, debris and weather.
Unlike conventional scaffold sheeting or tarpaulins, shrink‑wrap is designed to become drum‑tight under heat, meaning it won’t flap or billow under wind loads. This tightness not only improves weather resistance but reduces wear, noise and risk of tearing.
Why contractors use shrink-wrap construction screens
Using shrink-wrap construction screens can unlock several key advantages:
- Programme acceleration
By sealing off a floor or façade early, internal fit-out or mechanical, electrical and plumbing (MEP) works can commence before full external enclosure is complete. This overlapping of trade pathways helps compress schedules, reduce idle labour and avoid delays. - Weather protection and risk mitigation
Frequent weather changes (rain, wind, storms) can threaten open construction areas. A shrink‑wrap barrier ensures that interior finishes, materials and equipment aren’t compromised by the elements. - Dust, debris and containment control
Particularly during blasting, cutting or other internal works, the shrink‑wrap system contains dust and particulates, helping reduce contamination of adjacent zones or the public areas surrounding the build. - Professional site appearance and branding potential
A smooth, taut, white (or coloured) shrink‑wrapped façade looks tidier than loose nets or tarps. Some systems allow printing of company logos or project branding. - Sustainability and recyclability
High‑grade shrink-wraps are 100% recyclable (if not contaminated) and supporting timber or battens can be reclaimed or reused on site.
Design and engineering considerations
To deploy shrink-wrap construction screens safely and effectively, contractors must think carefully about design, structural loads, safety and access.
Supporting structure and fixing strategy
Shrink‑wrap can’t hang freely, it needs a sub‑frame. This is typically timber battens or engineered framing fixed to slab edges, columns or soffits. The wrap is trapped between primary and secondary battens and then heat-shrunk.
In certain situations, webbing straps, steel cables or tensioned systems may be used where direct fixing is difficult, for example, in retrofit or façade repair scenarios.
Structural calculations should confirm that the system can resist wind loads and differential pressure, especially at higher storeys. Reputable suppliers like Tufcoat often provide temporary works packages, loadings and structural support analysis.
Film grade, thickness and fire rating
Choosing the right shrink-wrap is critical. Typical shrink‑wrap for construction is around 300 micron thickness, balancing strength and flexibility.
The film should include UV inhibitors, anti‑brittle agents and flame retardant additives to prevent degradation, brittleness or propagation of fire. Tufcoat’s 300 micron shink-wrap is approved by Certifire to TS63 internally and TS62 externally and Certified to BS: EN13501 Class B standard.
Access, maintenance and removal
From the outset, the design should incorporate practical access solutions, such as zip doors or inspection windows, so trades can move freely and equipment can be brought in and out without compromising the integrity of the protective barrier.
Once the permanent façade is installed or the structure is fully weatherproofed, the shrink-wrap can be safely cut, folded and removed. At this point, careful planning for recycling or on-site waste management is essential to ensure the process is efficient and environmentally responsible.
Sequencing with cladding and envelope works
The schedule needs to co-ordinate the removal or cut-back of the shrink-wrap around areas where cladding or glazing is installed. In many setups, the shrink‑wrap remains in place adjacent to façade areas until external works are totally complete, minimising rework.
Health and safety compliance
Shrink‑wrap installation will often require elevated access (MEWPs, mobile towers) and installers must be qualified. Supervisors should hold relevant safety qualifications and all works should adhere to method statements, risk assessments and site coordination.
Best practices and pitfalls to avoid
To ensure a successful shrink-wrap construction screens installation, contractors should consider:
- Scheduling installation for suitable weather: Strong winds or wet conditions can interfere with heat welding, leading to weak bonds, blistering or compromised finishes.
- Taking a whole-project view of costs: Shrink-wrap is just one component; access arrangements, specialist labour, safety controls and potential remedial works should all be factored in.
- Treating shrink-wrap as single-use and recyclable: Once heated, the shrink-wrap no longer retains flexibility. Attempting to re-tension or reuse it is rarely effective and usually requires full replacement. However, it can be recycled if uncontaminated.
- Inspecting regularly during use: Check for accidental tears, impact damage or areas of high stress and carry out timely internal repairs to prevent escalation.
- Coordinating early with engineers and temporary works designers: This helps avoid excessive loading and ensures compatibility with scaffolding and other site systems.
- Working with proven specialists: Experienced installers like Tufcoat with clear methodologies, quality materials and a strong track record help minimise risk and unexpected issues.
Tufcoat in action
Tufcoat has delivered real-world shrink-wrap construction screens solutions to major sites. For example:
- At the LHR21 data centre near Heathrow, over 3,000 m² of screens were installed across five floors in five phases, enabling internal works to continue while cladding was delayed. Read the full case study.

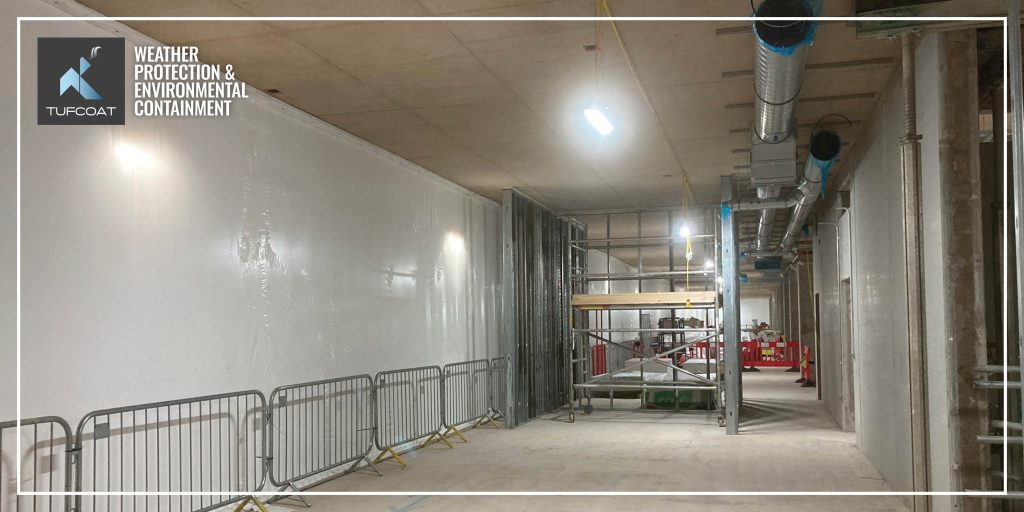

Tufcoat’s successful shrink-wrap construction screens resulted in fit-out works starting 3 months early at a new research centre for the University of Oxford.
These projects underscore the power of shrink-wrap construction screens to keep a programme on track, even under challenging site and weather conditions.
